Air Pollution Control Facilities

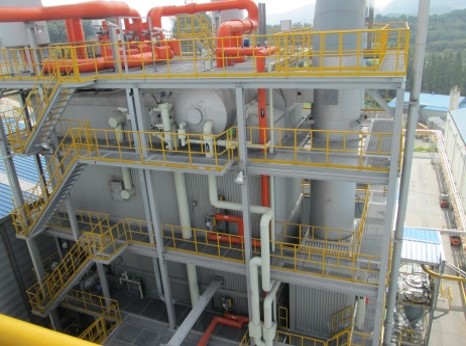

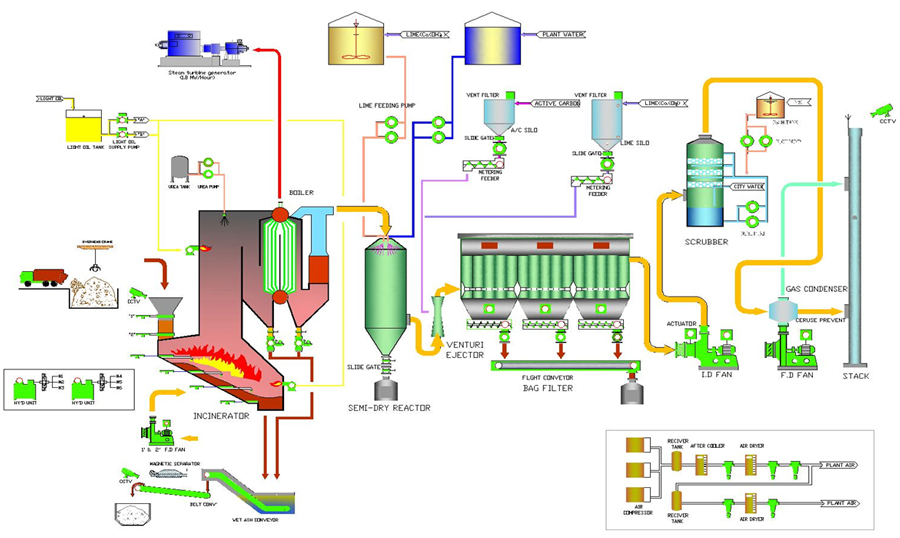

1. combustion gas treatment process flow diagram

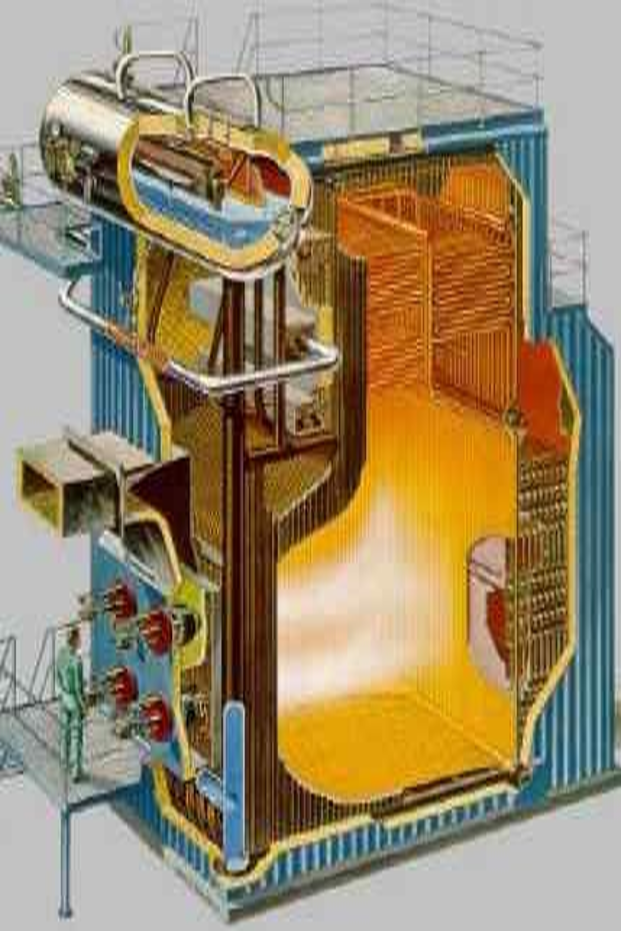

Combustion Boiler
Power Generation Facility
2. Air pollution control facilities (combustion gas treatment systems)
- technology overview
solid fuel boiler (at 12% O₂)
* Design basis: gas flow rate 20,000m³/day (H₂S inlet concentration 2,000ppm, outlet concentration 30ppm)
|
classification
|
NOₓ
|
SOₓ
|
HCl
|
Dust
|
Dioxins
|
|---|---|---|---|---|---|
|
Legal emission limit (Clean Air Conservation Act)
|
50 ppm
|
20 ppm
|
12 ppm
|
15 ppm
|
0.1Ng-Teq/Nm³
|
|
Our emission level
|
< 30ppm
|
<10 ppm
|
< 7ppm
|
< 10ppm
|
< 0.01
|
SNCR
De-NOₓ
SDR
De-SOₓ HCl
BAG FILTER
De-Dust, Dioxin
SCR
De-Dioxin, NOX
WET SCRUBBER
De-HCl, SOₓ
3. Air pollution control facilities (combustion gas treatment systems)
- technology overview

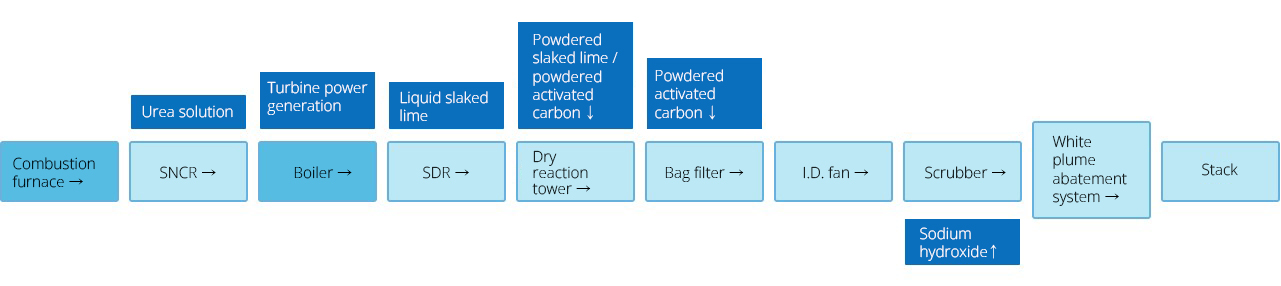

Emission of completely harmless gas through a five-stage treatment process
|
|
|||||
|---|---|---|---|---|---|
|
SNCR
|
Primary removal of harmful gases using urea solution
|

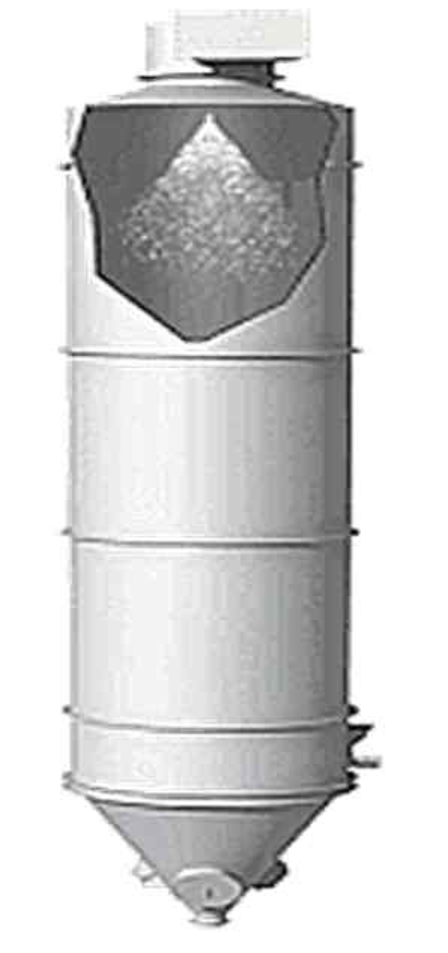

Semi-dry reaction tower (SDR)
|
Secondary removal of harmful gases by spraying fine slaked-lime slurry
|
Dry reaction system
|
Tertiary removal of harmful gases and primary removal of dioxins by injecting powdered activated carbon and slaked lime powder
|
|

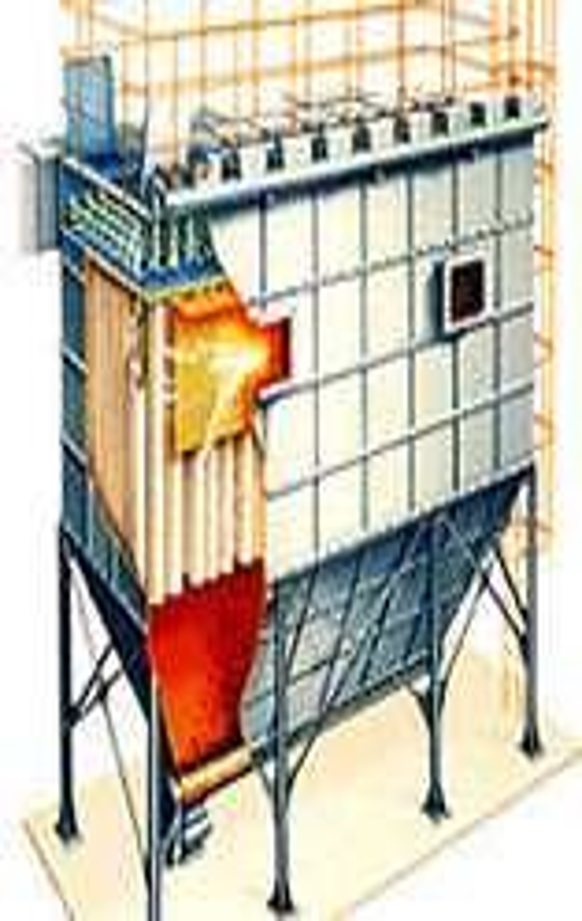

filter dust collection system
|
Additional reaction with unreacted chemicals for fourth-stage removal of harmful gases and 99.99% complete dust removal
|

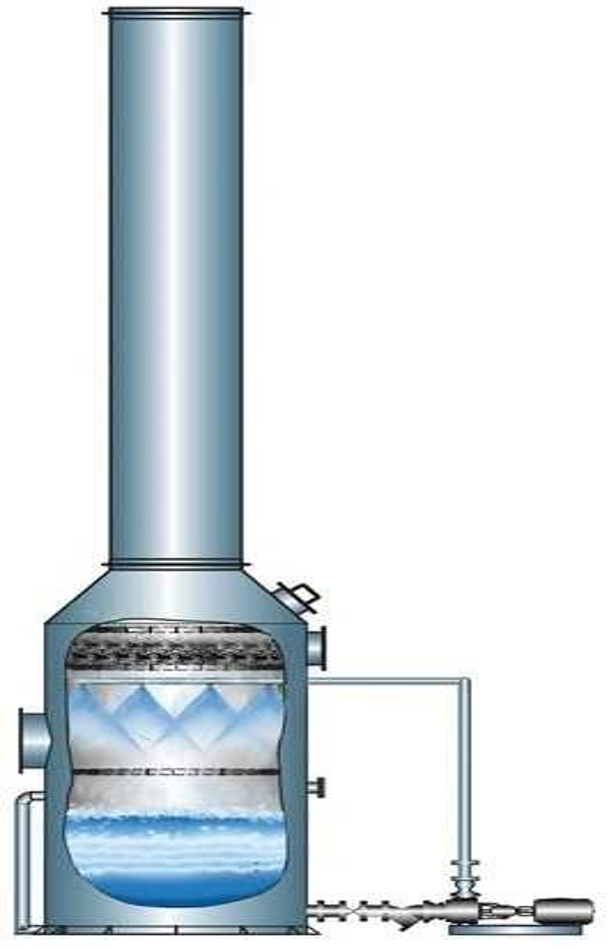

wet scrubber
|
Fifth-stage removal of harmful gases and second-stage removal of dioxins using Sodium hydroxide
|
White plume abatement system
|
|
4. Air pollution control facilities (combustion gas treatment systems)
- technology overview

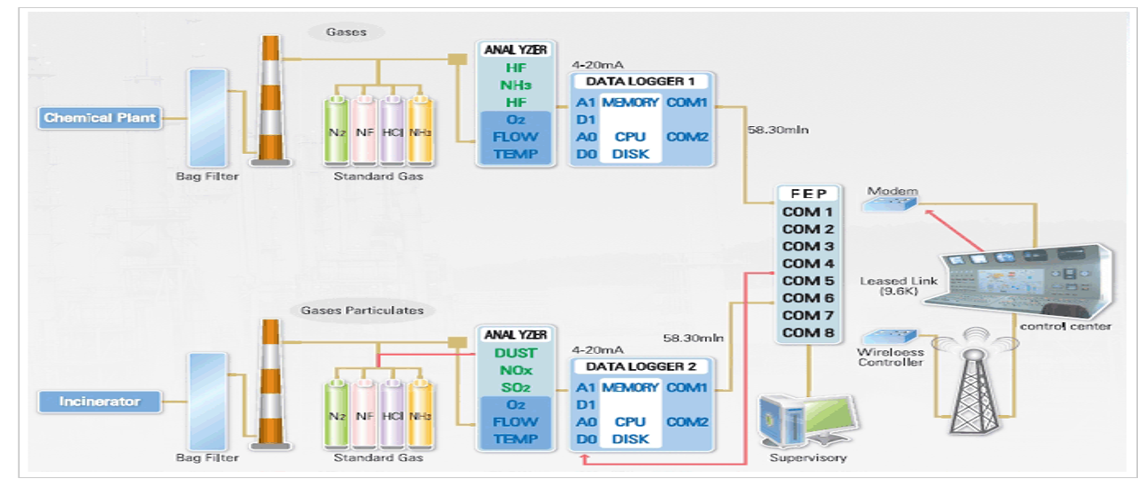

TMS measurement methods
technology overview TMS measurement methods
|
|
|
|---|---|
|
NOₓ
|
NDIR method (non-dispersive infrared)
|
|
SO₂
|
NDIR method
|
|
CO
|
NDIR method
|
|
O₂
|
Zirconia method
|
|
Dust
|
Light scattering method (in-situ type, sampling type)
|
|
HCl
|
Chloride ion electrode method
|
|
Flow
|
Pitot method (dynamic pressure, static pressure, atmospheric pressure → flow velocity)
|
|
Temp
|
RTD/thermocouple method
|
